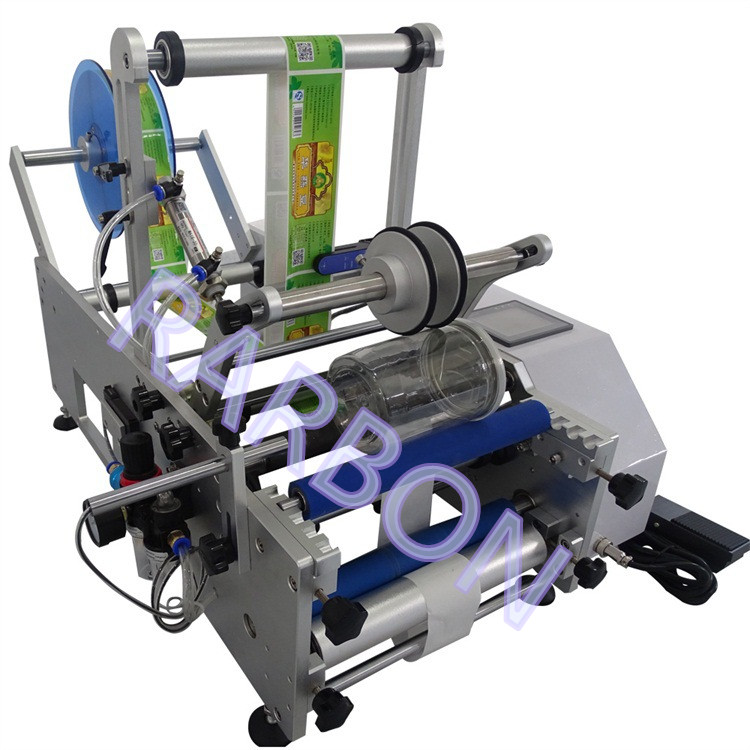

Self adhesive round bottle labeler machine

Products list

I.Product Information

Applicable bottle:

It apply to cylindrical objects, such as: medicine bottle , cosmetics round bottles, wine bottles and so on.

Basic use:

1)It can be posted a label, you can also paste two labels,

Can be achieved by rotating a circle or half a circle for labeling, the circumference is the back of the label, the back standard spacing can be adjusted.

2) Widely used in food, cosmetics, chemicals, pharmaceutical and other industries.

3)Optional circumference positioning detection device, to achieve the location of the labeling. Optional ribbon coding machine and inkjet printer,

labeling at the same time print production batch number and other information to reduce the packaging process, improve production efficiency.


There are two modes of operation, automatic sensor labeling and with the foot switch.

l ) A high degree of automation: start switch by the Panasonic brand induction fiber to complete, without manual tread foot switch;

pressure top of the whole action from the cylinder instead of complete, significantly reduce the operator labor intensity.

Ordinary version 15-25 / High configuration version can reach 20-35 / min, greatly improving production efficiency.

2) Compatible with the cone-shaped bottle label, with a taper adjustment knob, a simple adjustment to meet the taper bottle labeling; paste standard quality,

with product positioning, label corrective double positioning, label head and tail docking high degree of coincidence Wrinkles, no bubbles, to enhance the quality of guarantee;

3) The main equipment used 304 stainless steel and 6061 senior aluminum production, in line with GMP production requirements.

4) High stability, the use of Panasonic PLC + Germany labor test leuze photoelectric sensor, Ming Wei power switch control, stable performance, support 7 * 24h continuous work.

5)Durable, electrical separation, to prevent water vapor into the circuit and damage the circuit. Extend machine life.

II.Technical Data

Labeling accuracy

±0.5mm (excluding products, labels, error)

Labeling speed

15 ~ 35 pieces per minute (related to the product size)

Apply the product diameter


Apply label size

Length: 20 mm-200 mm; Width: 20 mm-130 mm;

Applicable to the power supply

220V/50HZ;(Can be customized according to the local voltage of different countries)

Apply labels inside diameter


Apply labels outside diameter

Ø 240mm



Power consumption


Air pressure


Net size (L*W* H)

About 920 mm * 470 mm * 500 mm


About 45Kg

III.Product Show
